CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B

    Buy cheap CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B from wholesalers

    Buy cheap CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B from wholesalers
    • Buy cheap CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B from wholesalers
    • Buy cheap CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B from wholesalers
    • Buy cheap CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B from wholesalers
    • Buy cheap CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B from wholesalers

    CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B

    Ask Lasest Price
    Brand Name : Tiger
    Model Number : CDB-300-34-105
    Certification : UL,ISO,CE,ROSH,CCC
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 20000PCS/Per Day
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

    CDB-300-34-105 Toroidal Power Transformer With Cable Various Input Options Class B

    Toroidal Transformer High efficiency Ring Transformer With Cable Various Input Options Class B CDB-300-34-105

    FEATURE&APPLICATION:

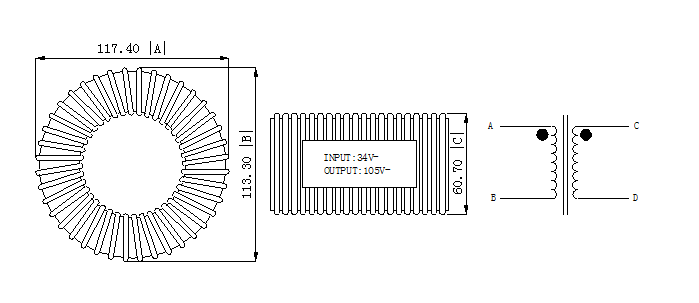

    MODEL NO.: CDB-300-34-105(
    INPUT: 34V~ RED-RED
    OUTPUT: 105V~ BLU-BLU
    Batch No: 2018.07
    AWM 1015 E225383 VW-1 105 600V 16AWG



    Packing: CTN
    Origin: China Mainland
    Standard: CE/UL/RoHs/REACH
    Production Capacity: 100,000,000PCS/YEAR
    Low Magnetic Noise
    High efficiency
    Excellent Load Regulation
    Easy Assembely
    Very Low No-load losses and magnetizing Current
    Half Size and weight Comparing to EI Transformer
    Various Input options
    100V/110V/117V/120V/220V/230V/240V,50/60Hz
    Dielectric Strength 3KV,1min
    100% Electric parameters Test
    Power Range 20VA-5000VA Available According to
    customer's requirement
    Class B insulation System
    Optional Single or Dual Primary


    According to:


    Rated PowerFrequencyOutside DimensionWeightTemp. RiseApproval
    (VA)(Hz)D*H(mm)(kg)(℃)
    6050/6098*350.948UL/CE/RoHS/CQC
    8050/6098*451.2553UL/CE/RoHS/CQC
    10550/6098*451.354UL/CE/RoHS/CQC
    12050/6098*451.3555UL/CE/RoHS/CQC
    15050/6098*551.656UL/CE/RoHS/CQC

    Application:

    WHO IS TIGER ?
    TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

    With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.

    TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
    · Automotive
    · Consumer Electronics
    · Industrial
    · Medical
    · Military & Aerospace
    · Telecommunications
    We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
    Packing:
    FAQ
    1. Q: Can I get some samples?
    A: Yes, sample order is available for quality check and market test.
    2. Q: What's the delivery time?
    A: Sample order needs 7 days. Formal order needs 15-20 days.
    3. Q: What's your payment terms?
    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
    4. Q: Do you have the prodcts in stock?
    A: Yes,we will keep some general ones in stock.
    5. Q: Can I mix different models in one container?
    A: Yes,different models can be mixed up.
    6. Q: Do you customize for customer or accept OEM Orders ?
    A: Yes,we provide designing and customizing services. OEM orders are also accepted.
