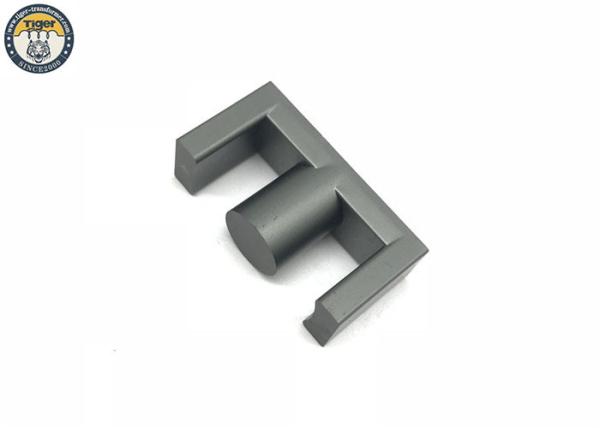

    Transformer Magnetic Ferrite Core ETD / EC Series Black ETD34 Customized

    Ask Lasest Price
    Brand Name : Tiger
    Model Number : ETD34
    Certification : ISO, CE,UL, RoHS, CCC
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 PCS/Day
    Delivery Time : 15-20 Working days
    • Product Details
    • Company Profile

    Transformer Magnetic Ferrite Core ETD / EC Series Black ETD34 Customized

    Customized Transformer Magnetic Ferrite Core ETD & EC Series Black ETD34


    ETD & EC series

    MATERIALS:TG-10P, TG-7P, TG-5P, TG-P4

    TYPEDimension:mmWeight:g
    ABCDEF
    ETD1919.6±0.413.65±0.257.40±0.2514.47.40±0.29.40±0.1514
    ETD2424.7±0.614.95±0.258.50±0.318.88.50±0.310.1±0.120
    ETD2930.6-1.615.8±0.29.8-0.6229.8-0.611.0±0.328
    ETD3433.4+1.617.5-0.411.1-0.625.611.1-0.612.1±0.340
    ETD3938.2+1.819.8±0.212.8-0.629.312.8-0.614.2+0.860
    ETD4443.0+2.022.5-0.415.2-0.832.515.2-0.816.5±0.494
    ETD4948.6±1.124.7±0.216.7-0.636.116.7-0.617.7+0.8124
    ETD5454.5±1.327.6±0.218.9±0.440.118.9±0.420.2±0.4180
    ETD5959.8±1.331.0±0.521.65±0.543.621.65±0.522.5±0.5260
    EC3534.5±0.817.3±0.159.8-0.622.29.8-0.611.9+0.736
    EC4140.6±1.019.65-0.311.9-0.626.311.9-0.613.5+0.852
    EC5252.2±1.324.2±0.1513.4±0.3532.113.4±0.3515.9±0.4110
    EC7070.0±1.734.5±0.1516.4±0.443.316.4±0.422.75±0.45258
    EC9090.0±1.845.0±1.330.0±1.068.530.0±1.035.5±0.5698
    EC120120.0±2.050.5±0.130.0±1.094.330.0±1.035.5±0.5780

    ETD & EC series

    MATERIALS:TG-10P, TG-7P, TG-5P, TG-P4

    TYPEEffective parameterAL(nH/N2)(AL±25%)
    C1AeLeVeTG-P4TG-5PTG-7PTG-10P
    (mm-1)(mm2)(mm)(mm3)
    ETD191.3241.354.622601720
    ETD241.1456.361.934802125
    ETD290.98573.670.651932670
    ETD340.8197.178.676402850
    ETD390.73712592115003240
    ETD440.588175103180004110
    ETD490.534213114242004570
    ETD540.454280127355004400
    ETD590.378368139512005400
    EC350.91884.377.465302400
    EC410.73512189.3108003200
    EC520.581180105189003400
    EC700.514279144402003900
    EC900.3466242161350006000
    EC1200.3327532501882506300


    According to:
    Application:

    TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.


    With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.


    TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
    · Automotive
    · Consumer Electronics
    · Industrial
    · Medical
    · Military & Aerospace
    · Telecommunications
    We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.


    TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

    We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

    ·Inductors

    ·High Frequency Transformers

    ·Video & Audio Isolation Transformers

    ·RF& Balun Transformers

    ·Current Sense Transformers

    ·Lamination Power Transformers

    ·Broadband Transformers

    ·Encapsulated Transformers

    ·Toroidal Transformers

    ·EMI-filter

    ·Common Mode Chokes

    ·Telecom Magnetics

    ·Other Magnetics

    Packing:

    FAQ

    1. Q: Can I get some samples?

    A: Yes, sample order is available for quality check and market test.

    2. Q: What's the delivery time?

    A: Sample order needs 7 days. Formal order needs 15-20 days.

    3. Q: What's your payment terms?

    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

    4. Q: Do you have the prodcts in stock?

    A: Yes,we will keep some general ones in stock.

    5. Q: Can I mix different models in one container?

    A: Yes,different models can be mixed up.

    6. Q: Do you customize for customer or accept OEM Orders ?

    A: Yes,we provide designing and customizing services. OEM orders are also accepted.
