    Durable Magnetic Ferrite Core UF Series Customized Transformer UF20.3

    Ask Lasest Price
    Brand Name : Tiger
    Model Number : UF20.3
    Certification : ISO, CE,UL, RoHS, CCC
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 PCS/Day
    Delivery Time : 15-20 Working days
    • Product Details
    • Company Profile

    Durable Magnetic Ferrite Core UF Series Customized Transformer UF20.3

    Magnetic Core UF Series Customized Transformer Ferrite Core Black UF20.3


    UF series

    MATERIALS:TG-10P, TG-7P, TG-5P, TG-P4

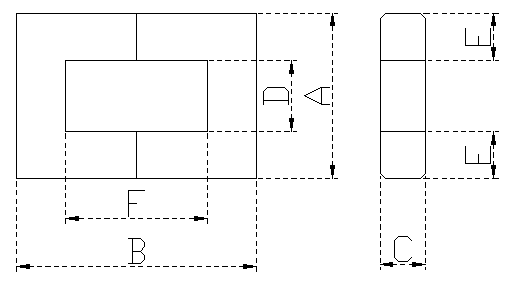

    TYPEDimension:mmWeight:g
    ABCDEF
    UF9.89.8±0.214.2±0.22.7±0.24.2±0.22.8±0.18.4±0.31.3
    UF10.310.35max15.0±0.32.93±0.124.05min2.95±0.18.6+0.71.5
    UF10.510.5±0.315.6±0.45.3±0.155.5±0.32.5±0.110.6±0.32.5
    UF1515.2±0.723.4-0.26.7-0.55.2±0.355.2±0.211.4+1.48
    UF15.715.7±0.219.6±0.35.9±0.156.7±0.24.5±0.212.0±0.26.7
    UF1616.0±0.220.0±0.46.0±0.157.0-0.34.5±0.212.0±0.26.9
    UF1818.4+0.526.1±0.46.2±0.156.0+0.46.2+0.413.5+0.611.8
    UF1919.0±0.726.0±1.06.0±0.158.5±0.54.5±0.219.4±0.78.5
    UF2120.7±0.831.2±0.67.45±0.26.3±0.37.25±0.216.6±0.418

    TYPEEffective parameterAL(nH/N2)(AL±25%)
    C1AeLeVeTG-P4TG-5PTG-7PTG-10P
    (mm-1)(mm2)(mm)(mm3)
    UF9.84.467.6634.2261.5  1000
    UF10.34.138.6335.7308  920
    UF10.53.0213.340530.7  1200
    UF151.5532.650.51647  3000
    UF15.72.0524.550.31232  2600
    UF161.9725.9511321  3300
    UF181.5538.459.42284  4400
    UF192.6425661652  1870
    UF211.275468.63700 4380

    According to:
    Application:

    TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.


    With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.


    TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
    · Automotive
    · Consumer Electronics
    · Industrial
    · Medical
    · Military & Aerospace
    · Telecommunications
    We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.


    TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

    We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

    ·Inductors

    ·High Frequency Transformers

    ·Video & Audio Isolation Transformers

    ·RF& Balun Transformers

    ·Current Sense Transformers

    ·Lamination Power Transformers

    ·Broadband Transformers

    ·Encapsulated Transformers

    ·Toroidal Transformers

    ·EMI-filter

    ·Common Mode Chokes

    ·Telecom Magnetics

    ·Other Magnetics

    Packing:

    FAQ

    1. Q: Can I get some samples?

    A: Yes, sample order is available for quality check and market test.

    2. Q: What's the delivery time?

    A: Sample order needs 7 days. Formal order needs 15-20 days.

    3. Q: What's your payment terms?

    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

    4. Q: Do you have the prodcts in stock?

    A: Yes,we will keep some general ones in stock.

    5. Q: Can I mix different models in one container?

    A: Yes,different models can be mixed up.

    6. Q: Do you customize for customer or accept OEM Orders ?

    A: Yes,we provide designing and customizing services. OEM orders are also accepted.
