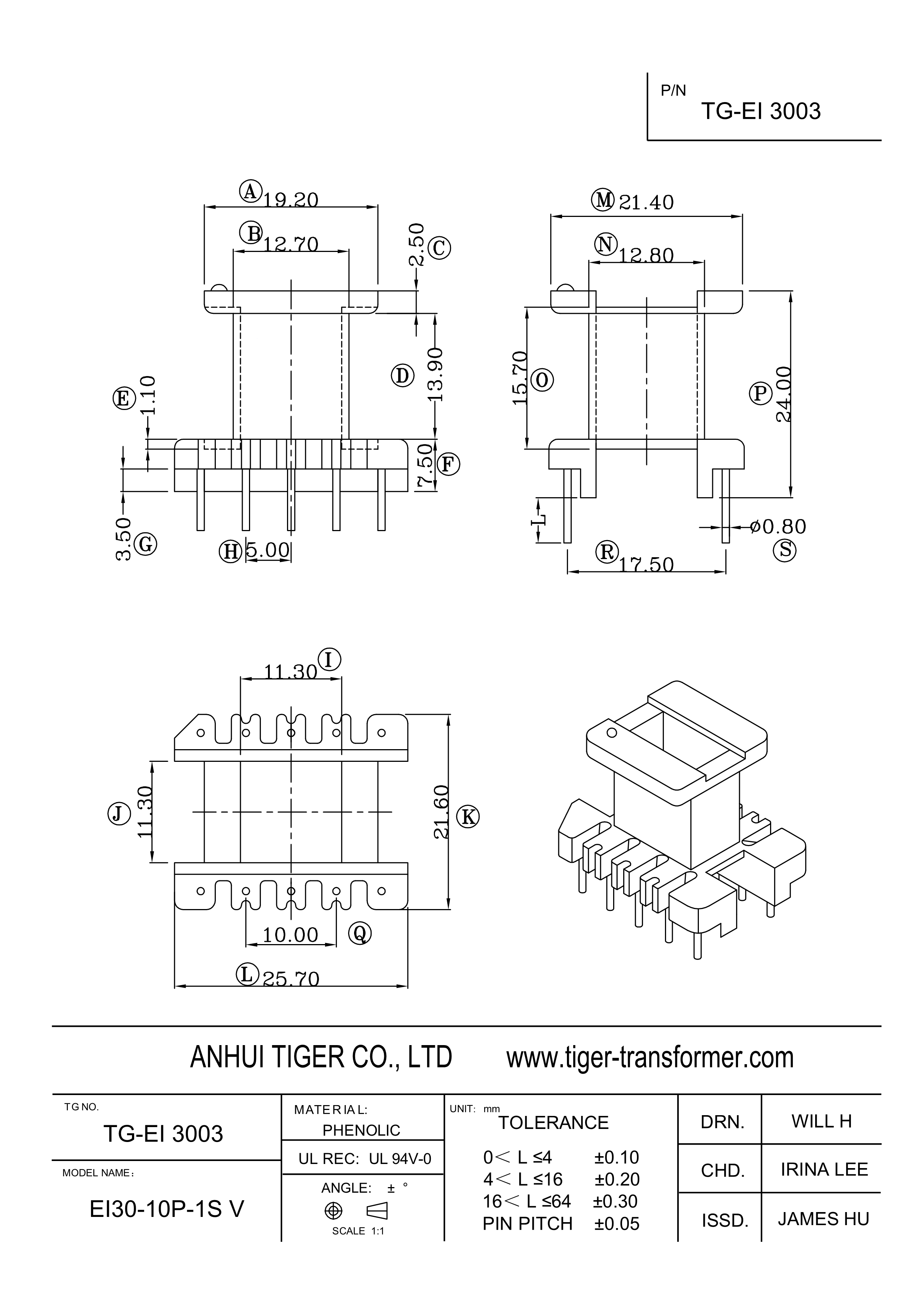

EI Type EI30 vertical Transformer Ferrite Core Bakelite Plastic
Bobbin With Pins
Bobbin series:EE/EI,EF,EDR,EPC,EFD,UU,PQ,RM,EER/EC,ETD,etc
| Series | Feature |
| EE bobbin | Applied in the switching power supply,main power transformer |
| EF bobbin | Applied in the switching power supply,main power transformer |
| EFD bobbin | Auxiliary powr transformer,main power transformer,choke coils |
| EPC Bobbin | Auxiliary powr transformer,main power transformer |
| PQ Bobbin | Applied in the linear filter,choke,pulse transformer,drive
transformer |
| UU Bobbin | Varieties of switching power supply transformer,coke coils et |
| EC/EER/ER Bobbin | Applied in the linear filter ,current tranformer,smoothing choke
coil,drive transformer, switching power transformers and chokes |
| RM Bobbin | Filters, inductors and transformers for telecommunication other
electronic equipment |
| POT Bobbin | Filters for telecommunication equipment,and various kinds of
inductors and transformers |
| DR Core | Choke coils, Peaking coils, Linearity coils, Alarm coils, Power
choke coils, Fixed choke coils, Filtering coils,etc; |
| EI Bobbin | Various kinds of transformers and chokes.
|
EI Series
Features:
• Meet the standard IEC62053 and ANSI C12.20
• High accuracy class ,wide linearity
• Superitor stability ,separate the external magneitc field
interference
• Measure the current directly
• It is with the diode to save people's life
• Meet the ROHS requirement
• High accuracy at 10-130% of rated current
• AC isolation resistance: 3KV for 60s
• Swing open for ease of installation
• Double secured latches per side and keying holes
• Rigid housing case with UL® 94V-0 durable plastic
• Safety standard: IEC/EN60044-1
Nominal linearity error: Conform IEC61869-2
ConformIEC60044-1
General Description
1. Bobbin EI (Ferrite bobbin) series belong to terminated Bobbins,
which are offered an extensive line of pinned and lugged standard
bobbins.
2. Many EI cores can be pressed into different thicknesses,
providing a selection of cross-sectional areas.
3. Bobbin EI for these different cross-sectional areas are often
available
4. We designed and built tooling capable of molding both the
terminated and slotted versions of bobbin EI.
5. We have many different sizes of these available and ready for
immediate shipment
Features:
1. Bobbin EI Material: Phenolic T375J
2. Pin of Bobbin EI Material: CP WIRE
3. Bobbin EI cost: Relatively low
4. Bobbin EI UL Class: UL 94V-0
We have accumulated abundant experience and established stable and
credible business relationships with customers worldwide. With rich
experience in dealing with all types of large and small orders, we
have developed extensive contacts with many local and international
freight organizations. Consequently, we are able to ship our goods
safely and reliably to almost anywhere in the world
We also supply hard magnets and magnetic materials from China. Our
magnets include ferrite magnets, flexible magnets, NdFeB magnets,
AlNiCo magnets, SmCo magnets, rubber magnets, refrigerator fridge
magnets, magnetic powder, magnetic compound meters & magnetizers,
and magnetic jewelry. We also supply ferrite cores, MnZn cores and
NiZn cores for transformers and coils, loudspeaker magnets, motor
magnets, and refrigerator gasket stripes.
Application:
TIGER designs and manufactures a wide range of products for
critical applications in various industries, including but not
limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products
for critical applications as well as cost effective products for
price sensitive applications.
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market
test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and
other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders
are also accepted.
