CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set

    Buy cheap CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set from wholesalers

    Buy cheap CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set from wholesalers
    • Buy cheap CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set from wholesalers
    • Buy cheap CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set from wholesalers
    • Buy cheap CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set from wholesalers

    CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set

    Ask Lasest Price
    Brand Name : Tiger
    Model Number : S332
    Certification : UL,ISO,CE,ROSH,CCC
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 20000PCS/Per Day
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

    CDRH SMD Shielded Power Inductor Class B Insulation For LED / LCD TV Set

    Cdrh SMD Shielded Power Inductor with ISO9001 and RoHS for LED


    Description:

    ■ Carrier tape packing use for SMT.

    ■ High rated,low DCR,Rotundity.

    ■ Suitable for reflow SMT Craft soldering.

    ■ Lead free products,RoHS compliant.


    1. VTR
    2. OA equipment
    3. Digital camera
    4. LCD TV set
    5. Notebook PC
    6. Partable communication equipments
    7. DC/DC converters

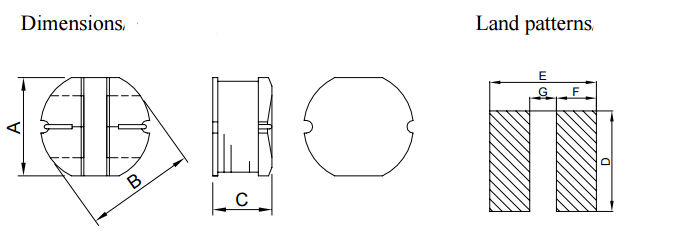

    According to:



    Type Name

    A


    B


    C


    D


    E


    F


    G

    QTY

    PCS/Reel

    SD31B3.0±0.33.5±0.31.6±0.33.2REF3.5REF1.25REF1.0REF3500
    SD323.0±0.33.5±0.32.1±0.33.2REF3.5REF1.25REF1.0REF3000
    SD42B4.0±0.34.5±0.32.0±0.34.2REF4.5REF1.75REF1.0REF3000
    SD434.0±0.34.5±0.33.2±0.34.5REF5.0REF1.75REF1.5REF2000
    SD545.2±0.35.8±0.34.5±0.355.5REF6.0REF2.15REF1.7REF1500
    SD757.0±0.37.8±0.35.0±0.507.5REF8.0REF3.0REF2.0REF1000
    SD1059.0±0.410±0.45.4±0.409.5REF10.0REF3.75REF2.5REF

    500

    typeAmaxBmaxCDEFGHFir gre
    4B185.02.06.94.51.55.31.91.52
    4B285.03.06.94.51.55.31.91.52
    5B186.02.08.25.52.06.32.152.02
    5B286.03.08.25.52.06.32.152.02
    Application:
    TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
    · Automotive
    · Consumer Electronics
    · Industrial
    · Medical
    · Military & Aerospace
    · Telecommunications
    We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
    Packing:
    FAQ
    1. Q: Can I get some samples?
    A: Yes, sample order is available for quality check and market test.
    2. Q: What's the delivery time?
    A: Sample order needs 10 days. Formal order needs 25-45 days.
    3. Q: What's your payment terms?
    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
    4. Q: Do you have the prodcts in stock?
    A: Yes,we will keep some general ones in stock.
    5. Q: Can I mix different models in one container?
    A: Yes,different models can be mixed up.
    6. Q:Will you deliver the right products as I ordered? How can I trust you?
    A: Sure, we could accept trade assurance on Alibaba, which will protect buyer's order.
