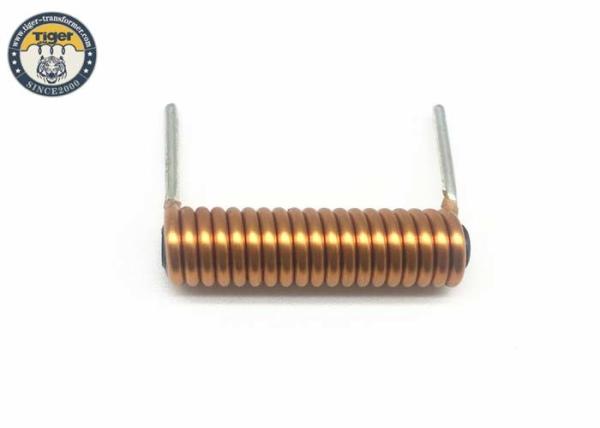

High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor

    Buy cheap High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor from wholesalers

    Buy cheap High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor from wholesalers
    • Buy cheap High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor from wholesalers
    • Buy cheap High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor from wholesalers
    • Buy cheap High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor from wholesalers

    High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor

    Ask Lasest Price
    Brand Name : TIGER
    Model Number : R5*25
    Certification : ISO, CE,UL, RoHS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 PCS/Day
    Delivery Time : 15-20 Working days
    • Product Details
    • Company Profile

    High Current DIP Power Inductor R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor

    High Current DIP Series R5*25 Ferrite Rod Magnetic Bar Unshielded Power Inductor


    Features:

    Use ferrite core,high frequency.

    Low DC resistance, High saturation current.

    Lead free product,RoHs Compliant

    Widely used in switching power supply,power amplifier,output antenna ,filter,Displayer,UPS and etc.

    • Available in 367 standard values covering a wide range
    of inductance and current
    • High saturation flux density material is ideal for use
    in switching regulated power supply applications
    • Ideal wherever high current choke values in a small
    physical size are needed

    Operating Temperature:-40℃∽+125℃

    Specifaction :


    Part No.ABCD
    Max±1±0.5±0.15
    RAR0525-4R7M8.2216.351.3
    RAR0525-5R0M8.222.56.351.3
    RAR0525-6R8M7.8236.151.1
    RAR0525-8R2M7.5226.051
    RAR0525-100M7.3215.950.9
    RAR0525-150M6.920.55.750.7
    RAR0525-220M6.8225.650.6

    Application:

    TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

    With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.

    At TIGER, we believe that customer service is just as critical as the product. Our helpful sales associates will ensure that every step of your experience with us runs smoothly. Our engineers’ commitment to your project’s success is resolute. Not only will our expert team help identify, develop and manufacture a part based on your specific requirements, but they will also provide solid ongoing post-sales support.

    Packing:
    FAQ
    1. Q: Can I get some samples?
    A: Yes, sample order is available for quality check and market test.
    2. Q: What's the delivery time?
    A: Sample order needs 7 days. Formal order needs 15-20 days.
    3. Q: What's your payment terms?
    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
    4. Q: Do you have the prodcts in stock?
    A: Yes,we will keep some general ones in stock.
    5. Q: Can I mix different models in one container?
    A: Yes,different models can be mixed up.
    6. Q: Do you customize for customer or accept OEM Orders ?
    A: Yes,we provide designing and customizing services. OEM orders are also accepted.
