    Compact Size Encapsulated PCB Transformer , Customized Low Frequency Transformer

    Ask Lasest Price
    Brand Name : TIGER
    Model Number : TG-48-6
    Certification : ISO, CE,UL, RoHS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 PCS/Day
    Delivery Time : 15-20 Working days
    • Product Details
    • Company Profile

    Compact Size Encapsulated PCB Transformer , Customized Low Frequency Transformer

    Competitive price ISO Factory Customized Low Frequency Transformer with UL Certificate

    Priamry: 115V 60HZ TO 230V 50HZ

    Power- 0.5VA to 36VA

    Dielectric strength- 4000Vrms

    Coil structure: laminated, encapsulated

    High ambient operation temporature(75 degree maximum)

    Secondary: single or dual

    Insulation class: Class B(130 degree)

    Colors: brown, blue,yellow,biack,grey etc

    Safety approval: CE,ROHS,CQC,ISO9001

    Short circuit proof ,anti-damp,anti-corrosion,compact size

    We also apply EP transformer with Secondary short circuit proof


    Specifaction :


    PART NOPrimary
    [V]
    Secondary
    [V]
    Current
    [mA]
    PinNo-Load Voltage
    [V]

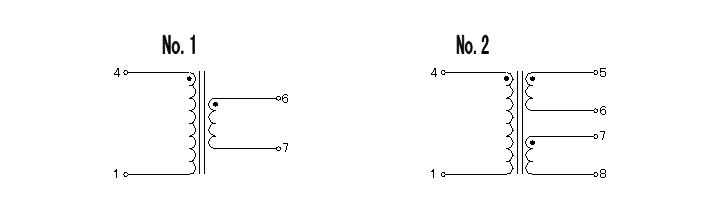

    Schematic No.
    TG2010-E-0050-090-S230v~955.51+4/6+715.01
    TG2010-E-0050-120-S230v~1241.61+4/6+720.01
    TG2010-E-0050-150-S230v~1533.31+4/6+725.51
    TG2010-E-0050-180-S230v~1827.81+4/6+731.01
    TG2010-E-0050-240-S230v~2420.81+4/6+741.01
    TG2010-E-0050-060-D230v~2× 62×41.61+4/5+6-7+82×10.02
    TG2010-E-0050-090-D230v~2× 92×27.81+4/5+6-7+82×15.52
    TG2010-E-0050-120-D230v~2×122×20.81+4/5+6-7+82×20.52
    TG2010-E-0050-150-D230v~2×152×16.61+4/5+6-7+82×25.52
    TG2010-E-0050-180-D230v~2×182×13.81+4/5+6-7+82×31.02
    TG2010-E-0050-240-D230v~2×242×10.41+4/5+6-7+82×41.02
    TG2010-U-0050-040-S115v~4125.01+4/6+76.71
    TG2010-U-0050-060-S115v~683.31+4/6+710.01
    TG2010-U-0050-090-S115v~955.51+4/6+715.01
    TG2010-U-0050-120-S115v~1241.61+4/6+720.01
    TG2010-U-0050-150-S115v~1533.31+4/6+725.51
    TG2010-U-0050-180-S115v~1827.81+4/6+731.01
    TG2010-U-0050-240-S115v~2420.81+4/6+741.01
    TG2010-U-0050-060-D115v~2× 62×41.61+4/5+6-7+82×10.02
    TG2010-U-0050-090-D115v~2× 92×27.81+4/5+6-7+82×15.52
    TG2010-U-0050-120-D115v~2×122×20.81+4/5+6-7+82×20.52
    TG2010-U-0050-150-D115v~2×152×16.61+4/5+6-7+82×25.52




    Application:
    TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
    · Automotive
    · Consumer Electronics
    · Industrial
    · Medical
    · Military & Aerospace
    · Telecommunications
    We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
    Packing:
    FAQ
    1. Q: Can I get some samples?
    A: Yes, sample order is available for quality check and market test.
    2. Q: What's the delivery time?
    A: Sample order needs 7 days. Formal order needs 15-20 days.
    3. Q: What's your payment terms?
    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
    4. Q: Do you have the prodcts in stock?
    A: Yes,we will keep some general ones in stock.
    5. Q: Can I mix different models in one container?
    A: Yes,different models can be mixed up.
    6. Q: Do you customize for customer or accept OEM Orders ?
    A: Yes,we provide designing and customizing services. OEM orders are also accepted.
