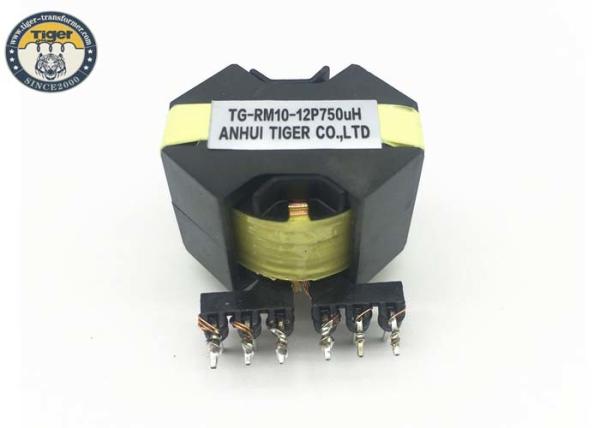

    Electronic Magnetic High Frequency Transformer 750uH Inductance P4 RM10

    Ask Lasest Price
    Brand Name : TIGER
    Model Number : RM10
    Certification : ISO, CE,UL, RoHS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 PCS/Day
    Delivery Time : 15-20 Working days
    • Product Details
    • Company Profile

    Electronic Magnetic High Frequency Transformer 750uH Inductance P4 RM10

    750uH Inductance P4 RM10 Electronic Magnetic High Frequency Transformer
    Features:
    • Core mounted Horizontal or Vertical
    • Hipot voltage:2500Vrms
    • Ferrite core material
    High-temperature resistant
    High efficiency of over 95%
    Working frequency range 20kHZ-500kHZ
    High isolation strength
    Lower profile and weight
    High power density
    Operating temperature -40℃to+125℃
    • Custom designs available
    • Rate current @40℃ TYP temperature rise
    • Ideally used as common mode noise filter for TV,VCR,
    Switching power supply,NC machine,PC&PC related
    advice,measurement and control unit
    According to:

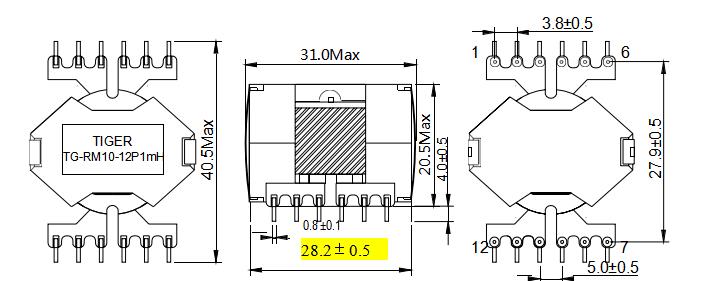

    Specifaction :


    No.StartFinishWire sizeTurnsWinding wayTapeNote
    N1122UEW φ0.25*330 TSClose winding2 TS
    N2982UEW φ0.25*360 TSClose winding2 TS
    N3342UEW φ0.25*330 TSClose winding2 TS
    N4562UEW φ0.206 TSSparse winding2 TS
    N511102UEW φ0.206 TSSparse winding2 TS

    ItemTest PointRangeTest ConditionTest machine
    InductanceL(Pin1-4) (2&3 SHORT)750uH ±10%10KHz/0.1VCH-1062A

    HI-POT

    PRI - SEC2500VAC

    5mA 3SEC


    YD9850A

    Winding - Core1000VAC

    Application:

    TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

    We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

    • Inductors

    High Frequency Transformers

    Video & Audio Isolation Transformers

    RF& Balun Transformers

    Current Sense Transformers

    Lamination Power Transformers

    Broadband Transformers

    Encapsulated Transformers

    Toroidal Transformers

    EMI-filter

    Common Mode Chokes

    Telecom Magnetics

    Other Magnetics

    Packing:
    FAQ
    1. Q: Can I get some samples?
    A: Yes, sample order is available for quality check and market test.
    2. Q: What's the delivery time?
    A: Sample order needs 7 days. Formal order needs 15-20 days.
    3. Q: What's your payment terms?
    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
    4. Q: Do you have the prodcts in stock?
    A: Yes,we will keep some general ones in stock.
    5. Q: Can I mix different models in one container?
    A: Yes,different models can be mixed up.
    6. Q: Do you customize for customer or accept OEM Orders ?
    A: Yes,we provide designing and customizing services. OEM orders are also accepted.
